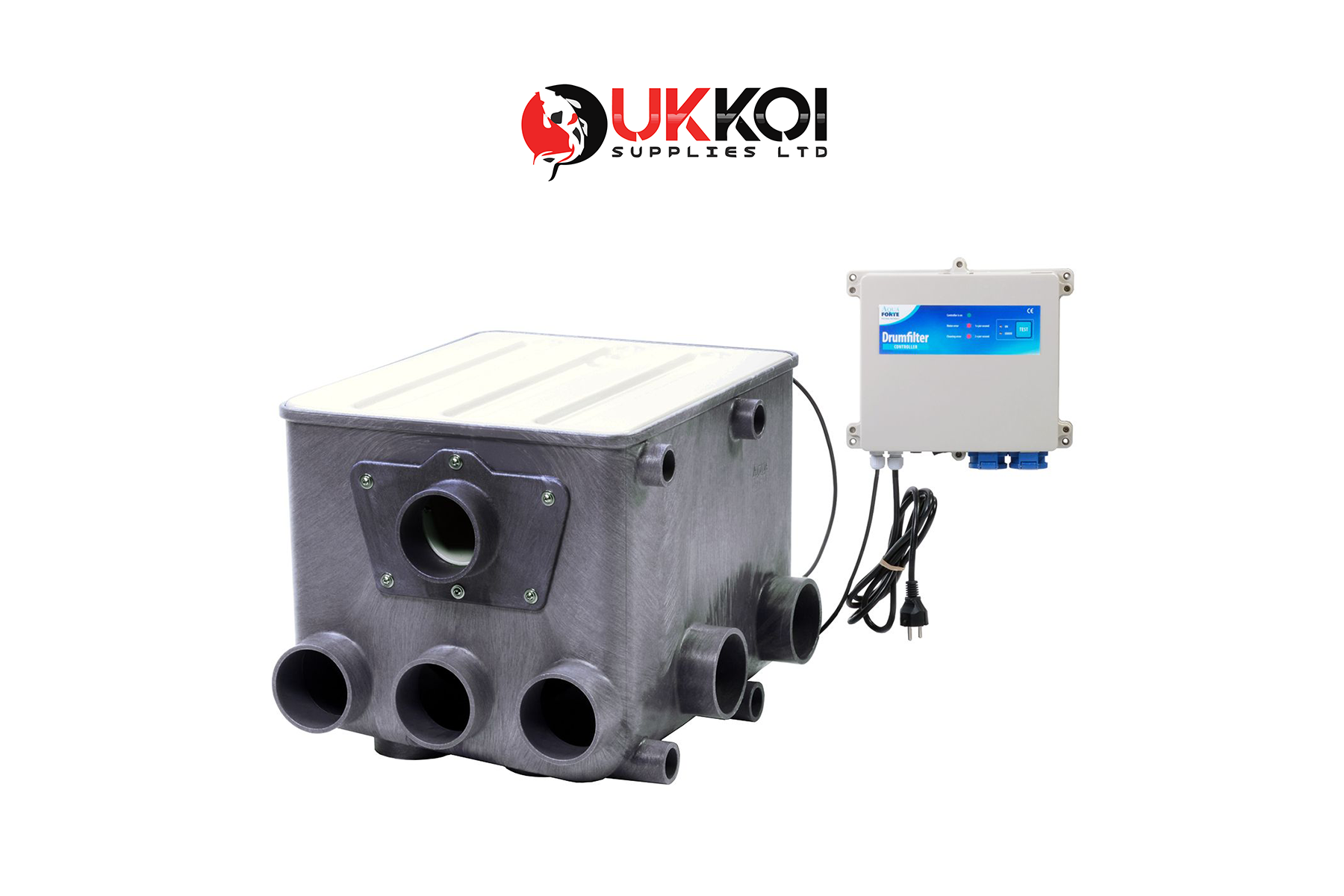

AquaForte Drum Filter AFT-1G (SK830)

A new breakthrough in technology and price level! The first affordable drumfilter including a professional, software based, controller.

• Extra low installing height of only 10 cm above the water level - Individual, exchangeable, screen elements of 60 micron

• Max. flow 25m³/h

• Controller with custom software operation including many safety options like motor slow start, motor amp protection, manual cleaning button, standard hourly cleaning, etc.

• Injection moulded housing made of HDPE, white parts are made of POM (Polyoxymethylene, a hard and strong polymer)

• 48VDC motor

• Suited for pump fed and gravity fed operation (inlet chamber and drum chamber are both fitted with a mounting bracket for the float switch). Float switch can be easily adjusted in height.

• 3 x Ø110mm inlet, 2 x Ø110mm outlet

• Ø50mm connections in inlet chamber and drum chamber in the top and the bottom

• Centred position for a 40 watt submersible amalgam lamp (just drill a hole for the tank connector at the centred spot)

• Only 1 cable from controller to drumfilter (this will divide into 3 cables: motor, float switch and cover switch)

• Fitted with cover switch (cuts the power off to the motor, cleaning pump and UV-C unit for safety)

• Size (L x B x H): 47 x 57 x 43 cm. Size incl. connections and motor: 50 x 70 x 43cm
